Product Details:

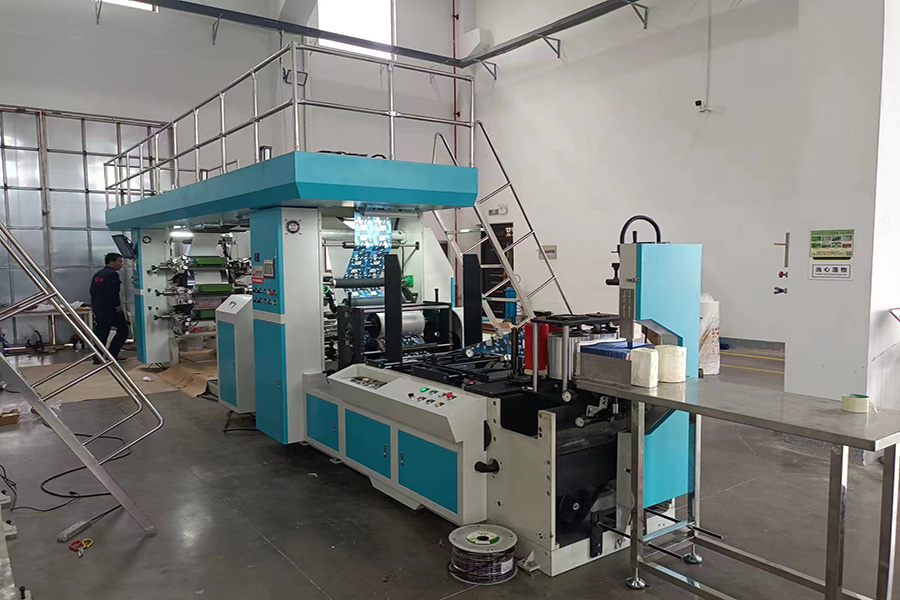

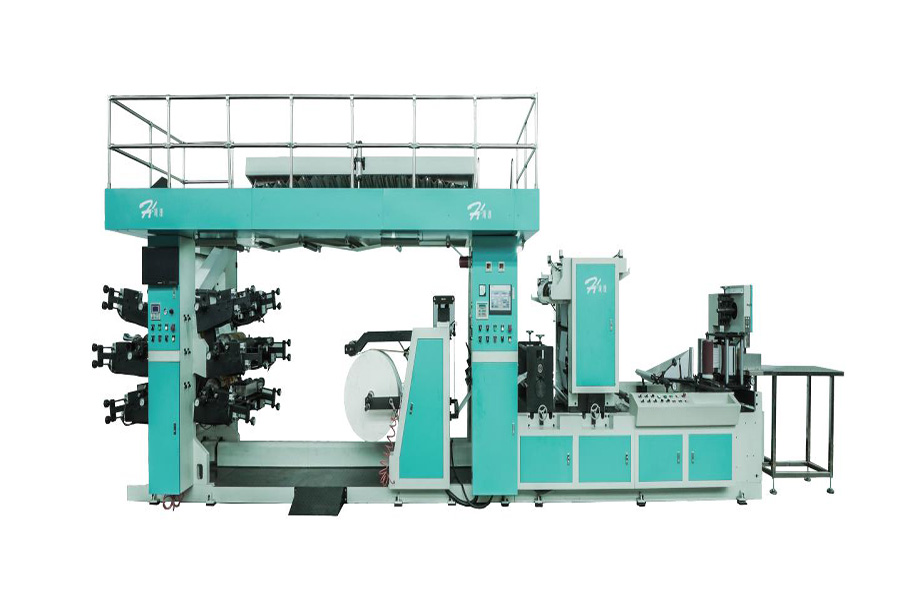

AISENSE Series Napkin CI Type Flexo Printing Machine

The AISENSE series CI type flexo printing machine are applicable to fine multi-color continous printing on the soft packaging roll materials such as Serviette Tissue Paper,Napkin Paper,Wedding Paper Towel,Banquet Theme Paper Towel, etc. The available printing color could be 4,6,8 and 10; the printing speed could be up to 120m/min.The machine is equipped with automatic material loading,deviation correcting,printing,embossing,folding,cutting and so on functions,which is the best choice to the modernized enterprises for high-quality,enviroment-friendly,high-efficiency,low power consumption and automatic production.




Machine Technical Parameters

Suitable Material

2 layers napkin; 3 layers napkin

Unwinding Dia for Paper Roll

maxΦ1200mm

Paper Roll Width

200—420 mm

Printing Width

200—420mm

Printing Colors

4-8

Printing Driven Way

Gear Driven(printing pitch 5mm)

Max Printing Speed

130m/min(depend on printing process)

Printing Repeat Length

200—840mm( can do imposition printing)

Printing Precision

±0.15mm

Regsiter Method

By Hand

Drying Method

Electrical Heating drying

Paper Core

Φ76 mm

Napkin Unfold Size(mm):

200\210\230\240\250\270\300\330\400\420    (standard size 300, others are optional)

Folding Specifications

Standard: 1/4;Optional:1/6、1/8
