Product Details:

I.Machine name

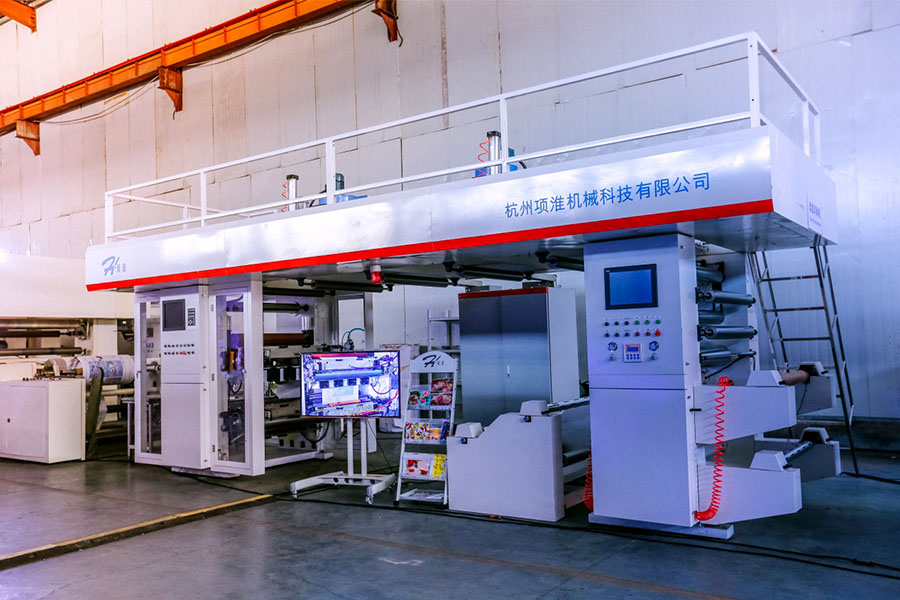

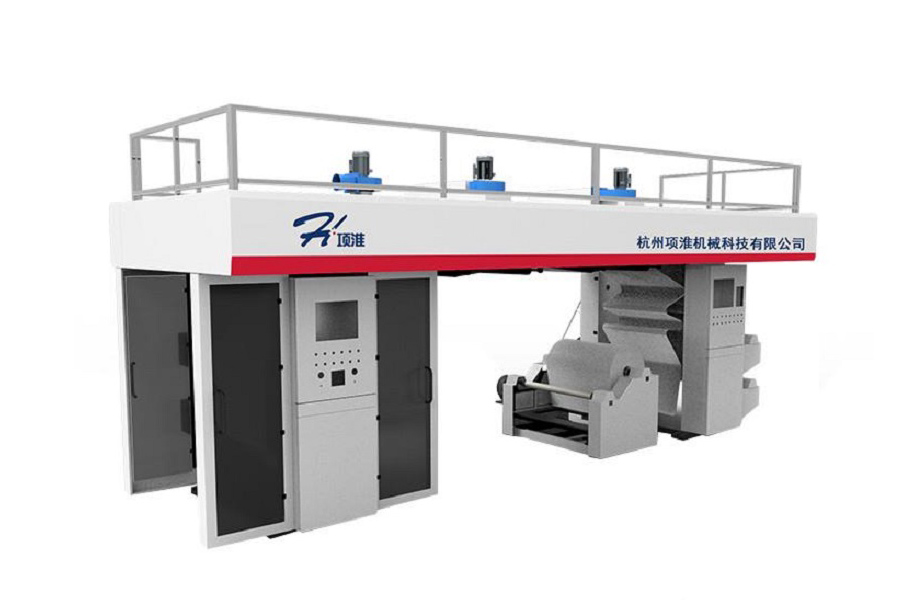

XHYT-41000mm stack type flexo printing machine
II.Printing material
non-woven fabrics(35~120gsm)、roll paper(20~300gsm)、plastic film(30-150μm)and so on.
III. Machine composition

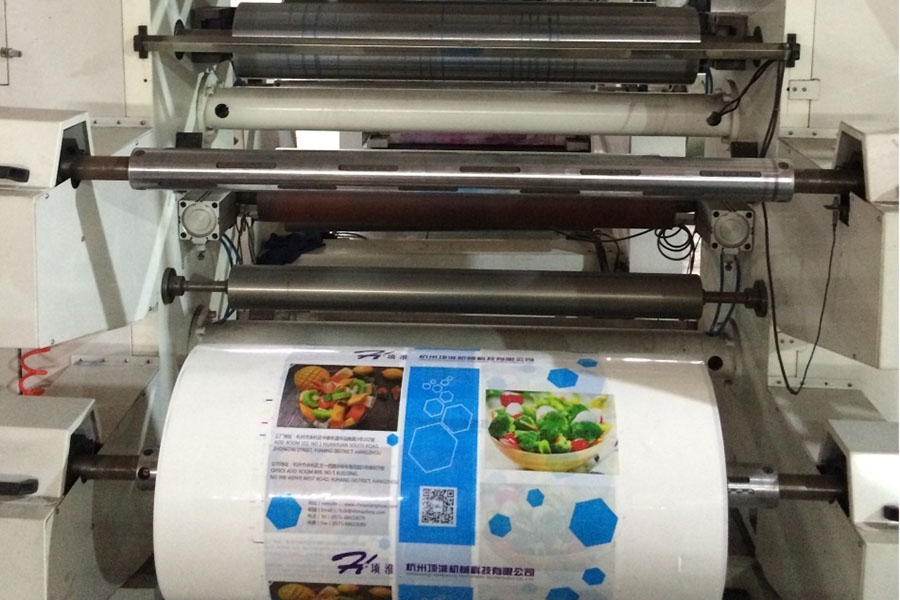

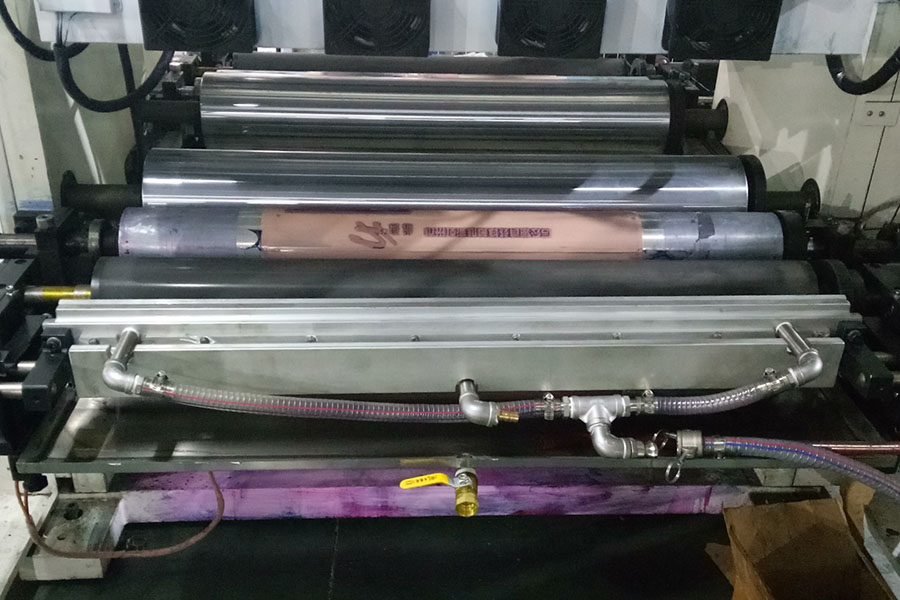

It mainly includes the following parts: unwinding unit—EPC—printing unit(4 colour)—heating drying - traction - rewinding system and HMI&PLC.
IV. Main parameters


Model
XHYT-41000mm
Max width of material 1000mm
Max printing width 960mm
Printing colors 4+0; (reverse printing is optional)
Max machinery speed 120m/min
Max printing speed 100m/min(Based on different materials and printing process)
Printing precision +-0.25mm
Ink Water based ink or alcohol ink
Printing length 300-1000mm
Thinckness of printing plate 1.7mm or 2.28mm
Unwinding Single station , Air shaft, 3 inches of paper cores
Rewinding Single station , Air shaft, 3 inches of paper cores
Tension control 0-500N/M
Heating way Electric heating
Max temperature of the oven. Max.50-80℃(indoor temperature20℃)

Optional Function:

Auto loading and disloading
Video inspection system
Servo motor driven
