Product Name :

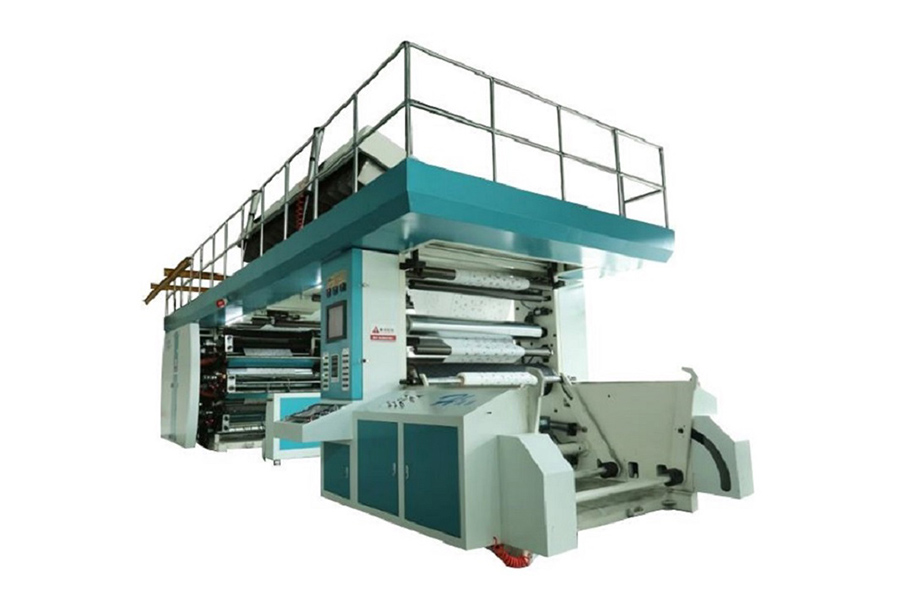

6 Colors Satellite Flexo Printing Machine

Product Catalog:

Central Drum Flexo Printing Machine
Paper Flexo Printing Machine
Non-woven Fabric Flexo Printing Machine
Plastic Film Flexo Printing Machine

Contact Detail :

Tel : +86 17767132623(whats app& wechat)
E-mail : z.y@xhmachine.com
Contacts:Alice Zhang

Product Details:

The color groups of the printing are arranged symmetrically and evenly around the central impression cylinder, the printing material is wrapped to the surface of the central cylinder, and the central cylinder and the plate cylinders of each color group operate synchronously at the same surface linear speed, thereby achieving multi-color printing.

Performance Specification

1.After mounting the plate and registration, no longer need registration, improve yield;

Replacing 1 set of Plate Roller (unloaded 6pcs old roller, installed six new roller after tightening), only
20 Minute registration can be done by printing;
2.The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in
the shortest possible time.
3.Maximum production machine speed up 220m/min, registration accuracy ±0.15mm.
4.The overlay accuracy does not change during lifting running speed up or down.
5.When machine stop, Tension can be maintained, the substrate is not deviation shift;
6.With precisionstructural,easy operation, easy maintenance, high degree of automation and so on,

only one person can operate.

Main Technical Parameters

Print color

4~8 colors

Web width

600-2000mm

Print width

560-1960mm

Machine speed

50~230m/min

Printing speed

50~220m/min(depends on different materials)

Print length

320-900mm

Anilox roller

Ceramic anilox roller

Register precision

±0.15mm( by hand)

Unwind diameter

1000 mm

Rewind diameter

1000 mm

Rewind/unwind paper core dia

76mm(inner diameter)

Wind roller

air shaft

Doctor blade

chamber doctor blade(enclosed doctor blade)

Ink

1. Water ink; 2. Water base ink; 3.alcohol ink; 4. UV ink.

Ink transport

Automatic ink recycle system

Dryer pattern

1. Electrical heating; 2. UV dryer.

Main motor power

3.7-5.5KW

Total power

26-40KW

Error correct system

1. Photocell corrector system; 2.hydraulic corrector system.

General bearing

NSK, Japan

Unilateral bearing

ASNU, Germany
