Product Name :

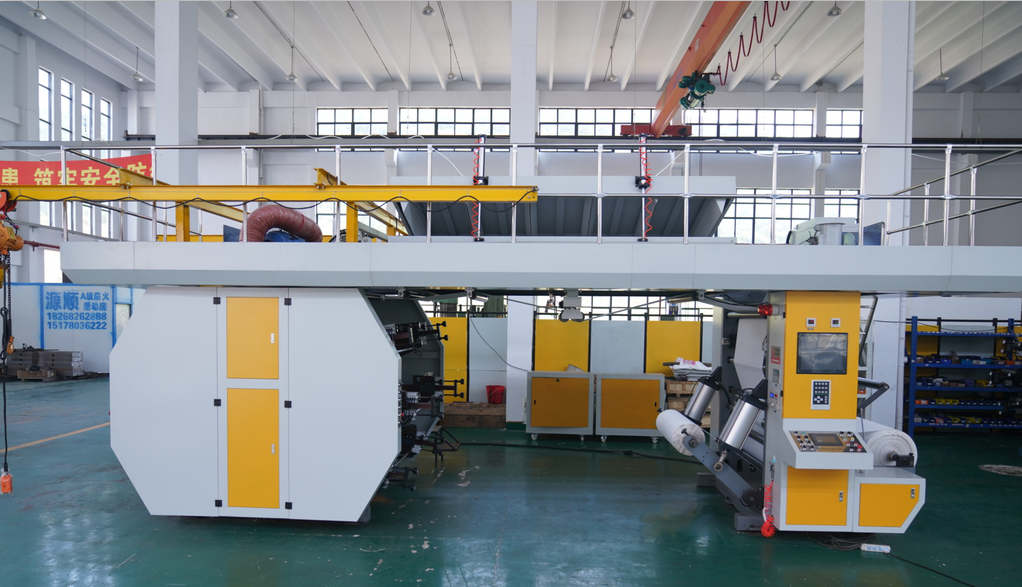

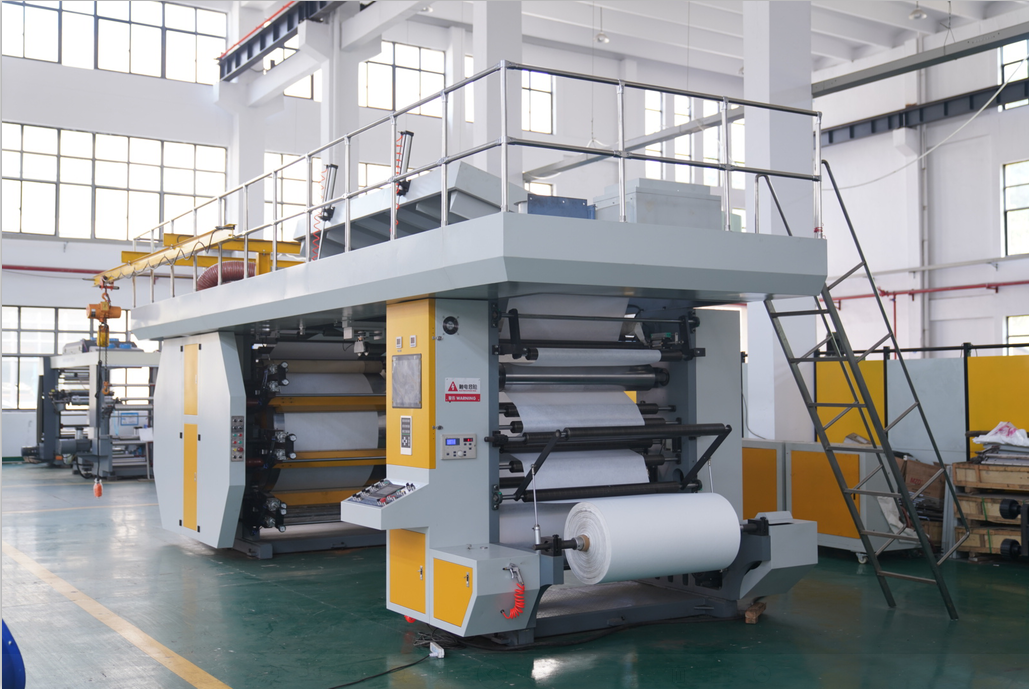

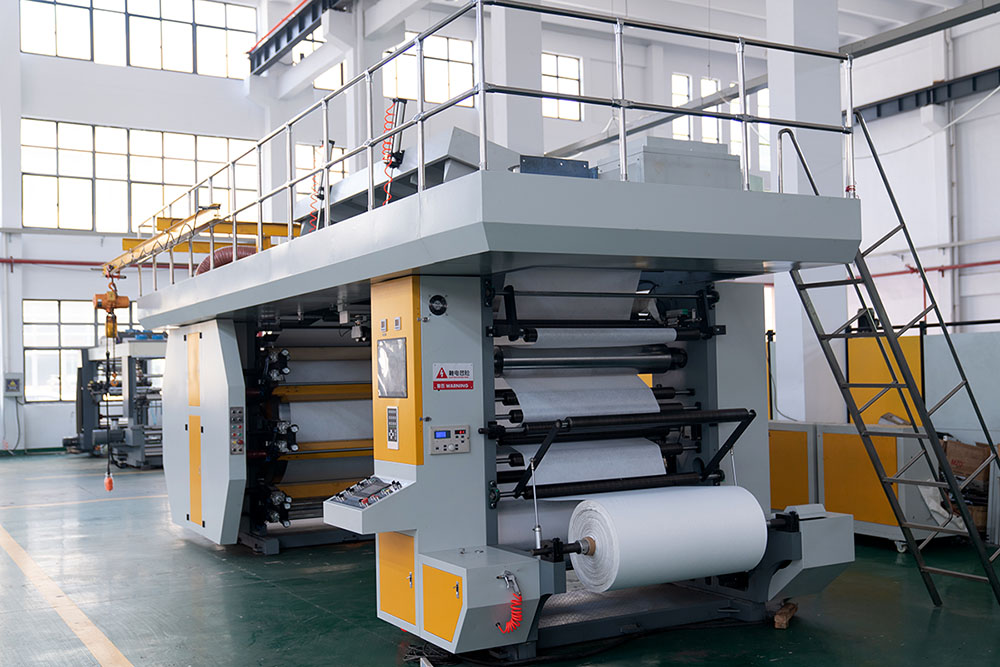

6 Color CI Type Flexo Printing Machine

Product Catalog:

Central Drum Flexo Printing Machine
Paper Flexo Printing Machine
Non-woven Fabric Flexo Printing Machine
Plastic Film Flexo Printing Machine

Contact Detail :

Tel : +86 17767132623(whats app& wechat)
E-mail : z.y@xhmachine.com
Contacts:Alice Zhang

Product Details:

I.Machine name

XHCI-E-61200mm CI type flexo printing machine

II.Printing material

non-woven fabrics(25~120gsm),roll paper(25~300gsm),plastic film(15-120μm)and so on.

III. Machine composition

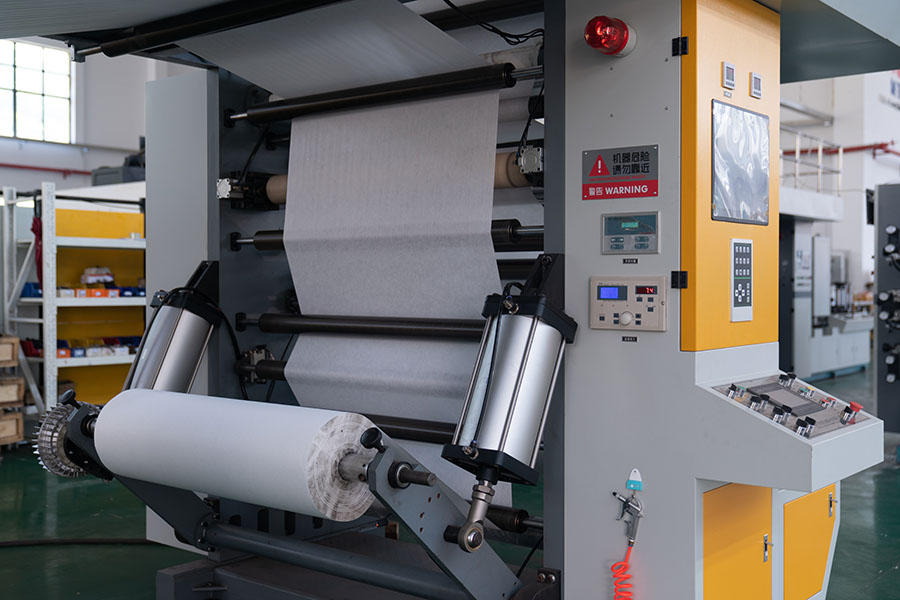

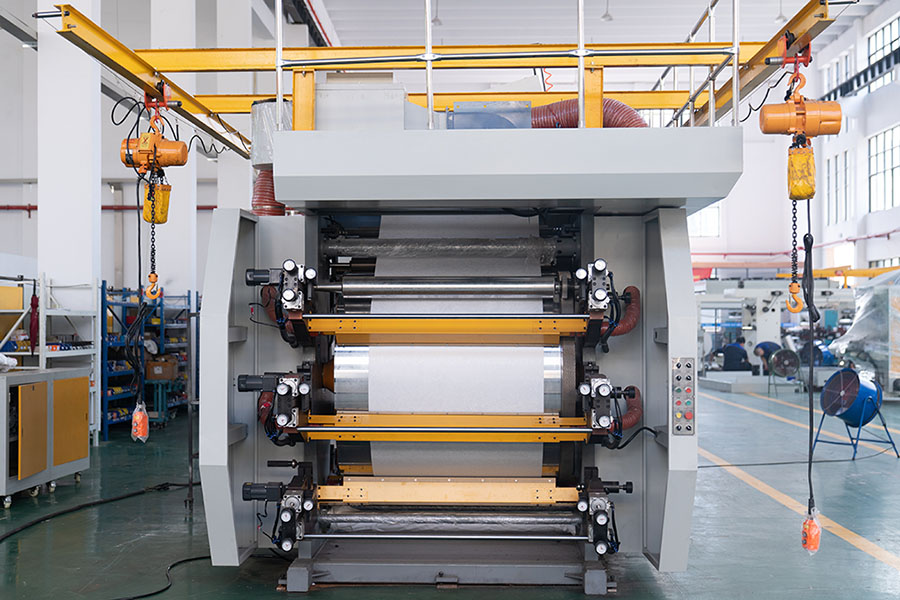

It mainly includes the following parts: 1 unwinding unit—EPC—printing unit(6 colors)—heating drying - traction – rewinding unit

IV.Main parameters:

Model

XHCI-E-61200 Economic CI type flexo printing machine

Width of Aluminum guide rollers

1250mm

Max width of material

1200mm

Max printing width

1160mm

Printing colors

6 colors(one side printing 6+0)

Max machinery speed

150m/min

Max printing speed

120m/min(depends on different materials and process)

Printing precision

±0.15mm

ink

Water-soluble ink or alcohol soluble ink.

Printing length

400~800mm (pitch 5mm)

Thinckness of printing plate

1.7mm

Thickness of Adhesive Tape

0.38mm

Diameter of winding

Φ1000mm

Unwinding &Winding shaft

Air shaft

Paper cores of unwinding&rewinding

3 inch

Colour register precision

±0.15mm

Tension control

0-500N/M

Heating way

Electric heating, hot air drying(heating power 56kw)

Temperature of the oven.

30-80℃(indoor temperature20℃)

Voltage& Frequency

3 phase 380V, 50HZ

Total power

99kw( actual use about 60 percent)

Weight

About 12T

Demension

about 8600mm×3500mm×2200mm



Machine Working Video



FAQ


Q:Can your products be customized?

A:Almost all of our machines can be customized,including the size, color,logo, package and so on.

Q: I need a quotation/How much is your price?

A: Please tell us your materials, width of your material, how many colors do you need.

Then we will know which machine is suitable for your and suggest the right machine for you.

Q: What's your delivery time?

A: Usually finish the production within 30 workdays(for normal stack type machine) and 90~120 workdays(for CI type machine) after your 30% advanced payment.

Actually need to check according our stock & production plan.

Q: How to get machine's price?

A: Please provide follows informations:

(1) How many colors you need to print?

(2)Material width and effective print width.

(3)What material to print?

(4)The photos of printing sample quality.

Q: How long is your machine's warranty period?

A: All our machine have one year guarantee, starting from finished installation.

Q: How could we do if the parts broken within warranty?

A: We would express the free replacement parts during the warranty date.
