Product Details:

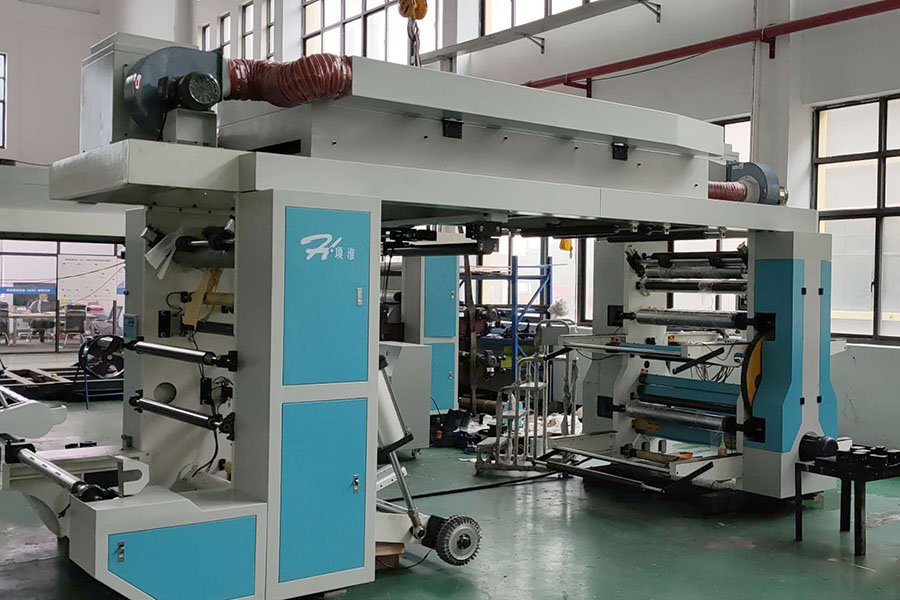

AISENSE Series Stack Flexo Printing Machine-XHYT-H-41000MM

This is an improved stack type, adopting the CI central big gear to drive the whole 4 printing units to acheive a better color register; the drying unit uses hot air drying with electrical heating to have a quick and efficient drying on the material.  It is suitable for various kinds of soft packing materials such as roll paper, plastic film, non-woven, etc.

Max width of material: 1000mm;
Printing color:1-4
Printing length:250mm-900mm
Manual Color register at ±0.20mm;
Max Printing Speed 100m/min(based on different materials and printing process);

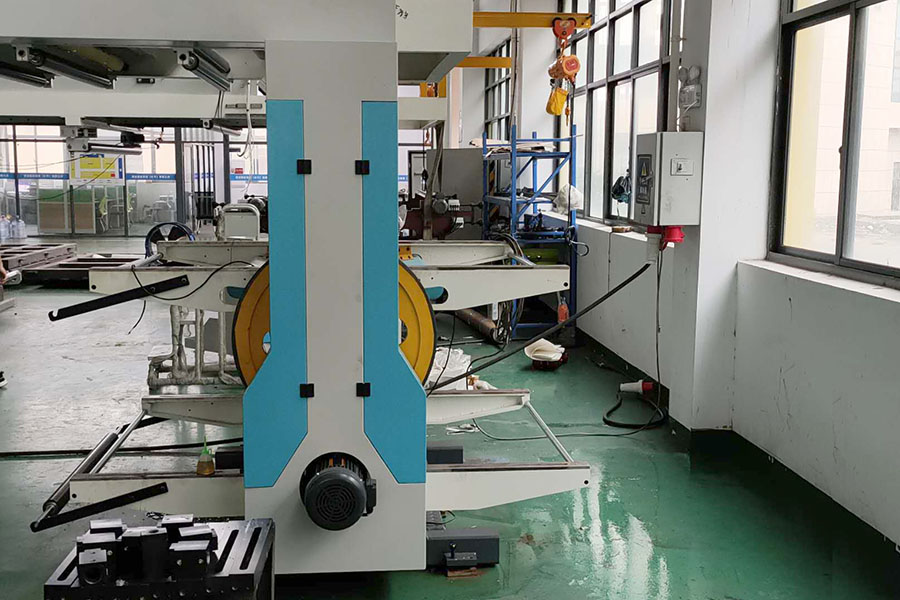

Unwinding: single one, pneumatic auto loading; magentic powder control;
EPC and tension control
Printing units: big gear drive, 4 pcs shaft type plate rollers, 4 pcs cermamic anilox rollers, 4 pcs of enclosed doctor blade chambers; auto ink supply by membrane pumps;
Central drying system on top(hot air drying);
Rewinding: single station, manual loading; magetic powder control;

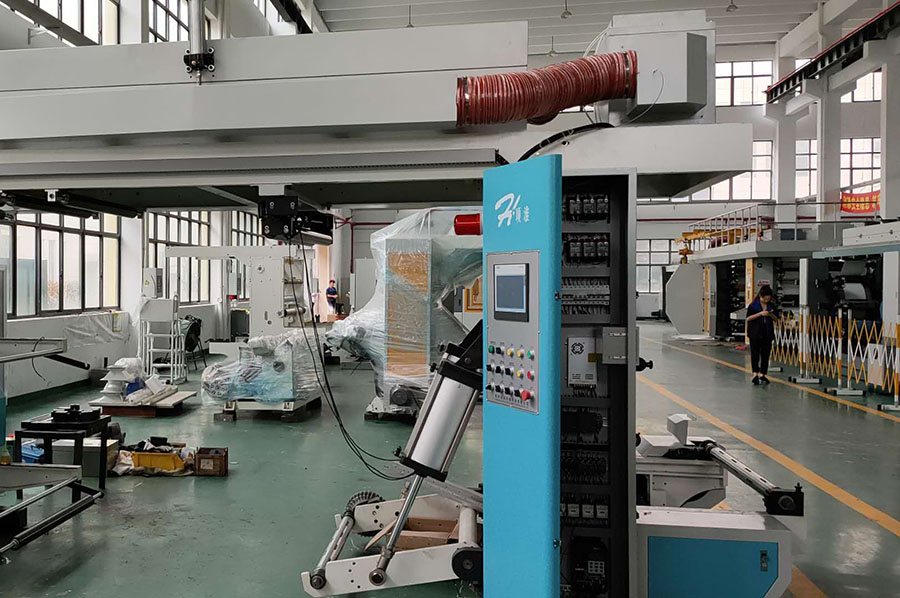

PLC and HMI(Siemens)

Model:

XHYT-H-41000mm

Printing Color:

4 Colors

Max. Width of Material:

1000mm

Max. Width of Printing:

960mm

Max Roll Diameter

1000mm

Length of Printing:

250mm-900mm

Machinery Speed:

10-120m/min

Printing Speed:

10-100m/min
(according to the printing materials and process)

Register Precision:

Transverse:+-0.20    Longitude:+-0.20

Thickness of Plate

1.7mm

Anilox Roller:

Ceramic anilox roller

Heating Power:

30KW

Total Power:

42KW

Power:

Voltage:380V,3PH,50HZ
